SFP 100M/1000M 1310nm 10KM

PRODUCT DESCRIPTION
F-tone Networks’s GEFE Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), and are designed for SGMII MAC interface to 100BASE-FX (The SGMII MAC Interface implements a modified 1000BASE-LX Auto-Negotiation to indicate link, duplex, and peed to the MAC). The transceiver consists of four sections: the standard SFP part with DDM, the PHY part build with SGMII interface, the 1310nm FP laser and the PIN photo-detector. The module data link up to 10km in 9/125um multi mode fiber.

PRODUCT FEATURES
¡ñ Built-in PHY supporting SGMII Interface
¡ñ Built-in high performance MCU supporting easier configuration
¡ñ Hot-Pluggable
¡ñ Dual data-rate of 100BASE-LX/1000BASE-LX operation
¡ñ 1310nm FP laser transmitter and PIN photo-detector
¡ñ Duplex LC connector
¡ñ RoHS compliant and Lead Free
¡ñ Up to 10 km on 9/125μm SMF
¡ñ Single +3.3V Power Supply
¡ñ Standard serial ID information Compatible with SFP MSA
¡ñ Support Digital Diagnostic Monitoring interface
¡ñ Operating case temperature: Industry temperature: -40 to +85°C
                                            Commercial temperature: -5 to +70°C

APPLICATIONS
¡ñ Switch to Switch interface
¡ñ Switched backplane applications
¡ñ Fast Ethernet
¡ñ Other optical transmission systems

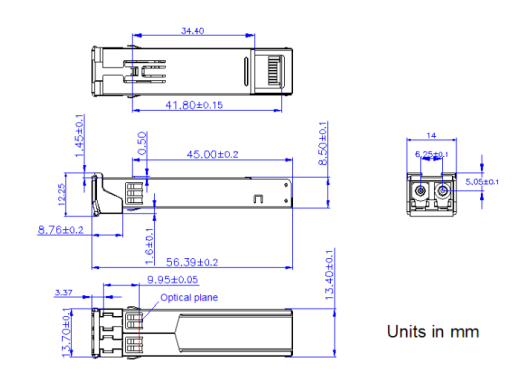

Module Outline Drawing£¨Units in mm)

Order Information

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡

±¾²úƷΪSFPϵÁйâÄ
£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµbeat365¡£
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
